| 재료: | 탄소강 | 총 차량 중량: | 25,000kg |
|---|---|---|---|
| 강조하다: | FAW JK6 6x4 crane truck with XCMG boom,25T payload capacity crane truck,truck mounted telescopic crane 320HP |
||
| Category | Parameter | Specification |
|---|---|---|

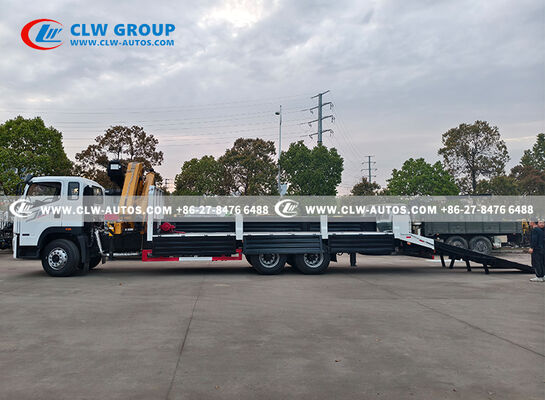

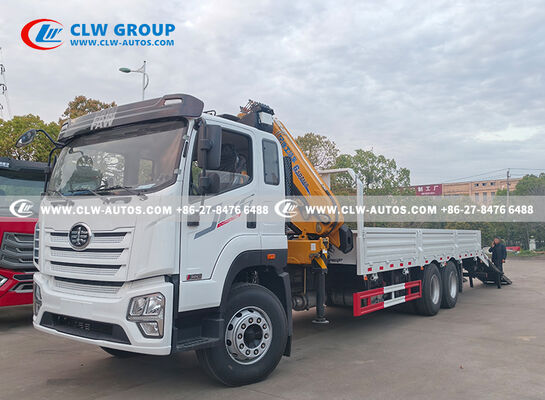

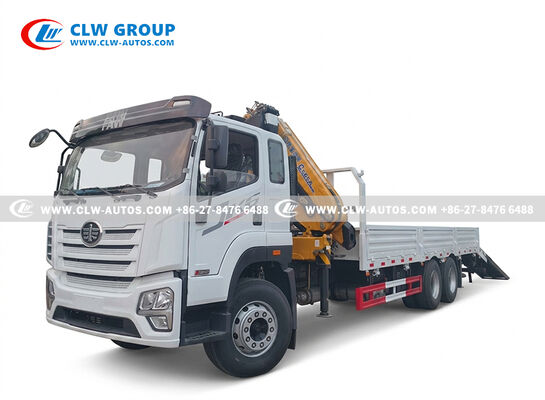

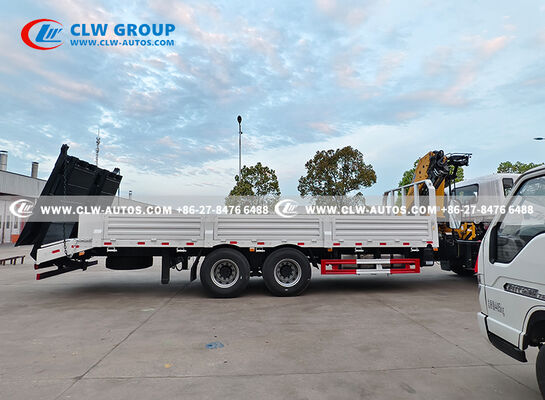

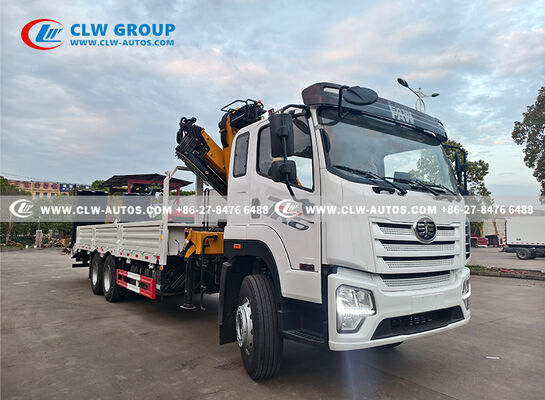

| Basic Info | Product Name | FAW JK6 6x4 Folding Boom Crane Truck with Hydraulic Ramp |
| Gross Vehicle Weight | 25,000 kg | |
| Payload Capacity | Up to 25 tons (for construction machinery/heavy loads) | |
| Chassis | Make & Model | FAW JK6 6x4 |
| Cab Type | One-and-a-half row cabin, LHD, with A/C | |
| Wheelbase | 5600 + 1350 mm | |
| Engine Model | CA6DL1-32E5 | |
| Horsepower | 320 HP | |
| Emission Standard | Euro 5 | |
| Gearbox | 9 forward + 1 reverse | |
| Front/Rear Axle Loading | 6700 kg / 13000 kg × 2, with ABS | |
| Tires | 12R22.5 16PR, 10 pcs + 1 spare | |
| Crane | Crane Make & Model | XCMG SQZ160 Folding Boom Crane |
| Max Lifting Moment | 16.8 t*m | |
| Crane Capacity | 8-ton class, 3-section folding boom | |

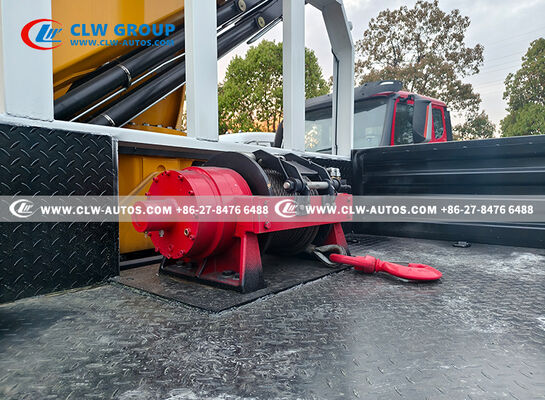

| Winch | Hydraulic winch with steel wire rope and hook | |
| Outriggers | Full set of stabilizers (front + rear) for lifting safety | |

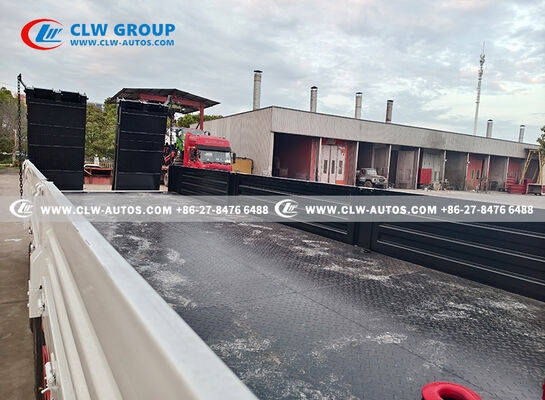

| Body & Ramp | Cargo Body | Reinforced flatbed with diamond plate floor, side gates |

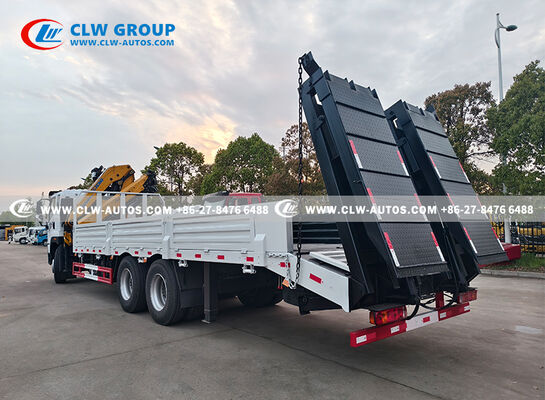

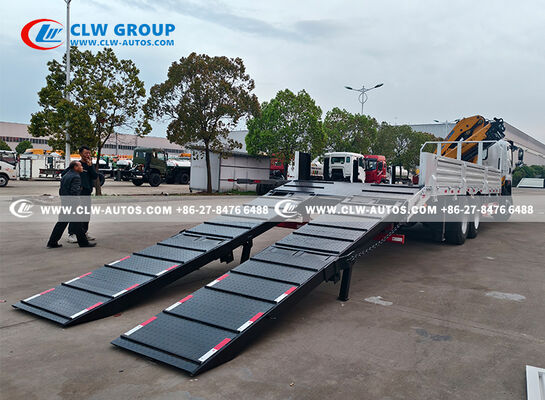

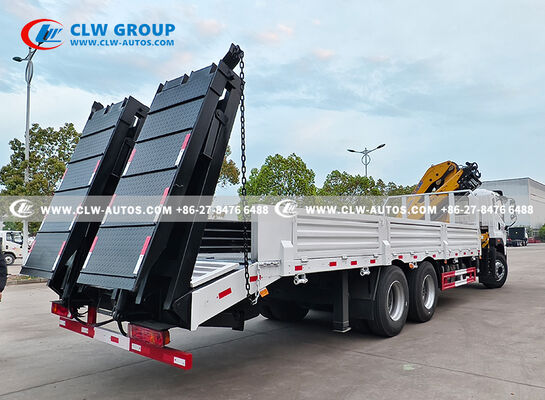

| Loading Ramp | Dual-section hydraulic foldable ramp for heavy machinery loading | |
| Ramp Capacity | Matched for 25-ton equipment loading |
