| Category | Item | Specification / Value | Notes |
|---|

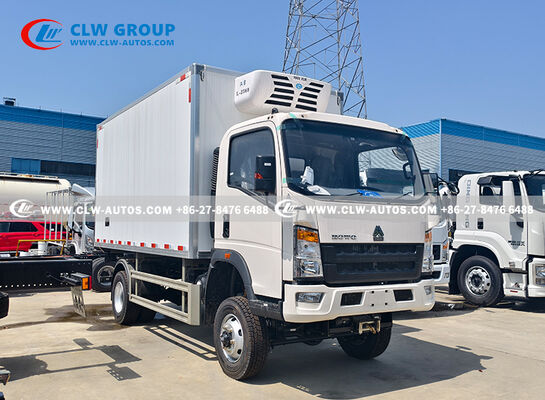

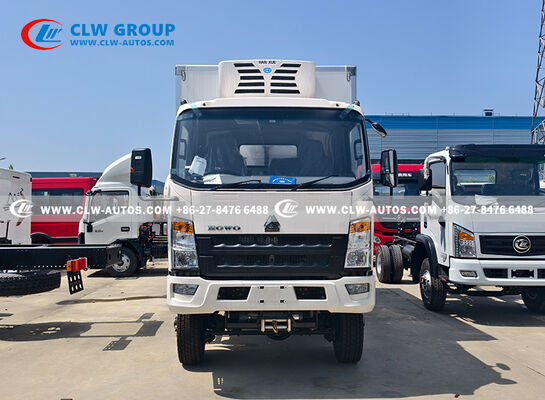

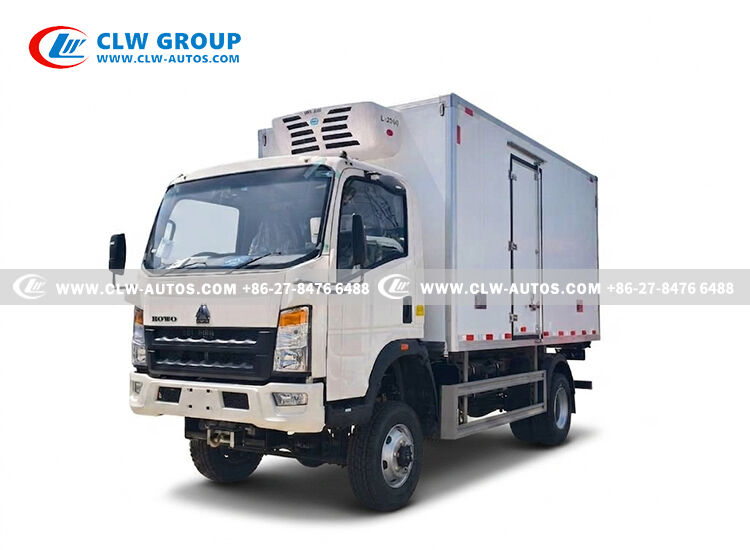

| Truck Type | Vehicle Model | SINOTRUK HOWO 4X4 Refrigerated Truck | Heavy-duty off-road cold chain transport vehicle |
| Driving Type | Driving & Steering Type | 4X4 Full Wheel Drive, Right Hand Drive (RHD) | Full-time off-road chassis, suitable for rugged & remote areas |
| Dimensions & Weight | Overall Dimensions (L*W*H) | 8,995*2,600*3,980 mm | Varies by chassis and box configuration |
| Van Body Internal Dimensions (L*W*H) | 6,640*2,440*2,420 mm | Approx. 39.2 m³ (CBM) cargo volume |
| Gross Vehicle Weight (GVW) | 18,000 kg | Heavy-duty load capacity |
| Curb Weight / Rated Payload | ≈7,880 kg / 10,000 kg | Sufficient payload for cold chain cargo |
| Chassis & Running Gear | Chassis Brand & Type | SINOTRUK HOWO Heavy-duty 4X4 Off-road Chassis | Reinforced off-road suspension, strong terrain adaptability |
| Wheelbase | 5,200 mm | Stable driving structure |
| Engine Model | MAN MC07.21-50 (Licensed MAN Technology) | Reliable and fuel-efficient |
| Horsepower & Emission Standard | 210 HP, EURO V / EURO VI | Comply with international environmental standards |
| Transmission | 10-Speed Manual Transmission | Smooth shifting, suitable for off-road driving |
| Front/Rear Axle Load | 4.5 Tons / 10 Tons | Reinforced load-bearing axles |
| Tires | 275/80R22.5 Tubeless Radial Tires | Wear-resistant, anti-skid for off-road conditions |
| Fuel Tank Capacity | 300L Aluminum Alloy Fuel Tank | Large capacity for long-distance transportation |
| Off-road Auxiliary Configuration | 5.4 Ton Heavy-duty Electric Winch | Powerful self-rescue & traction capability for harsh terrains |
|

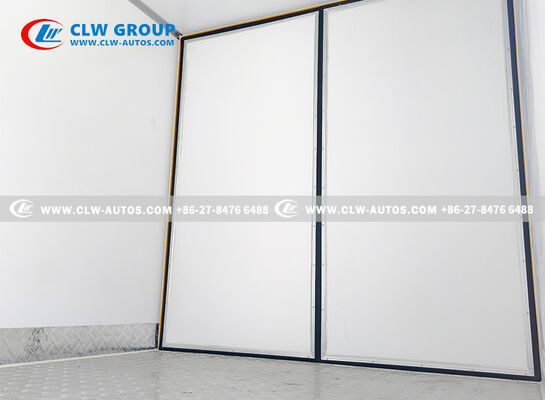

| Reefer Box Body | Box Construction | High-end Integrated Sandwich Plate Structure | Hydraulic suction integrated molding, seamless & durable |
| Inner/Outer Skin Material | High-strength FRP (Fiberglass Reinforced Plastic) | Anti-oxidation, corrosion-resistant, easy to clean |
| Insulation Core Material | High-density PU Foam Insulation | Ultra-low heat conduction, excellent constant temperature effect |
| Insulation Thickness | 80 mm | Meet deep refrigeration & heat preservation requirements |
| Cargo Floor | Full Aluminum Checker Plate Anti-slip Floor | Wear-resistant, anti-slip, corrosion-proof, easy to clean |

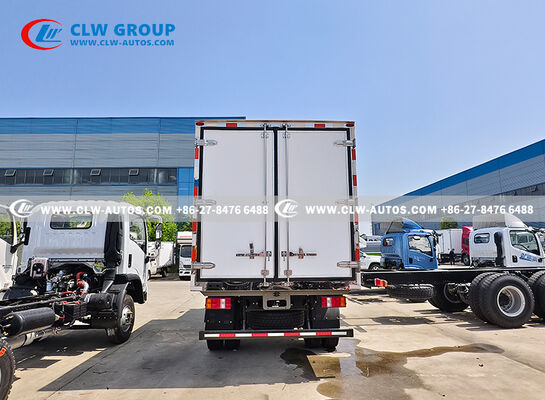

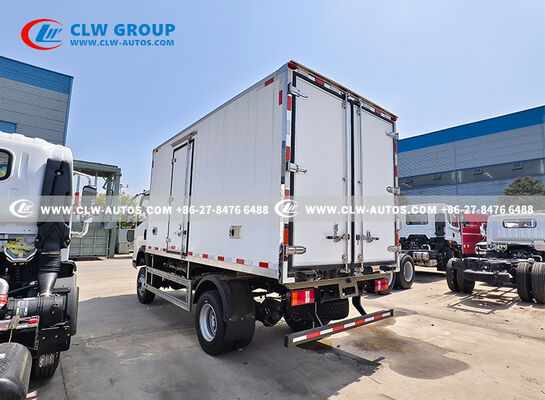

| Standard Door Configuration | Rear Double Doors | Stainless steel hinges & lock fittings |
| Optional Door | Right-side Single Door | Convenient for multi-point loading & unloading |
| Refrigeration System | Refrigeration Unit Brand & Model | HanXue Non-independent Refrigeration Unit | Stable performance, cost-effective & energy-saving |
| Unit Type | Engine-driven Non-independent Refrigeration Unit, 24V | Matches truck power system perfectly |
| Refrigerant Type | R404A | Environmentally friendly & high-efficiency refrigerant |
| Temperature Range | -18℃ to 0℃ | Suitable for frozen and fresh cargo transportation |
| Temperature Monitoring System | Temperature Recording & Display Device | Meet global cold chain transportation compliance standards |
